Product Range

Standard Equipment

>> Inverter motor controller
>> Memminger positive feeders
>> Needle detectors
>> Central stitch device
>> Pressure or mist type oiler
>> Mechanical take-down system
>> Memminger side creel
>> Cadratex fabric spreader
>> Spare sinkers, needles and tool box
>> Anti-dust device
>> Lighting

Optional Equipment

>> Lycra feeding attachment
>> Memminger yarn meter
>> High twist yarn feeding device
>> Indicating light for warning
>> Synthetic yarn guider for enveloped fabric
>> Motorized take-down system
>> Support cams
>> High leg system for industrial capacity request
>> open width system
>> Online integrated production platform

Specifications of Machine Models

Yarn materials : Slik, pure cotten, blend, and synthetic fibers etc.
Fabric pattern not only includes plain interlock fabric, but also Punte de Roma, eight lock, Double pique, single pique , welt ripple and reversible etc.

Electronic Flat Knitting Machine

Parameter

Gauge
1.5G, 2.5G, 3.5G, 4G, 5G, 7G, 8G, 10G, 12G, 14G, 16G, 18G and 3,5,7 multi gauge
Knitting Width
52 (inches) 60 (inches) 66 (inches) 80 (inches)
Knitting Speed
Controlled by servo motor with 24 sections speed optional, max 1.2m/s
Knitting System
GE2, single carriage with double system GE3, single carriage with three system
Knitting Function
Knit, Miss, Tuck, Transfer, Pointel, Intarsia, Jacquard, Hide, Apparent shaping and other regular or irregular patterns

Parameter

Racking
Controlled by servo motor racking within 2 inches and with fine adjusting function
Clip & Cutter
Including 4 clips 2 cutters, which individually controlled by 6 motors separately The procedure order may proceed by simultaneous or separately further to increase the workefficiency and to reduce yarn consume.
Tale down roller
Programmed instruction controlled by stepping motor 24 levels selection adjustable area is 0-100.
Yarn Carrier
2x8 yarn carriers on each side of 4 guide rails, shiftable on any needle position
Protection
The machine will automatically alarm if yarn breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programmimg occur also set up the safety auto lock protect device.

Parameter

PC System

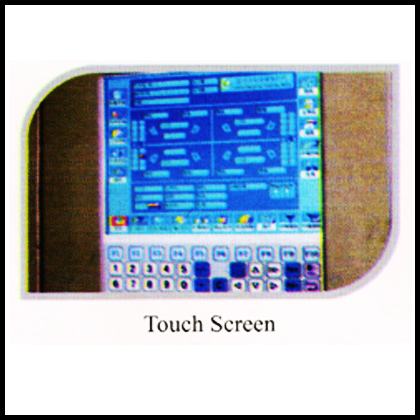

1. Screen, Adopt LCD touch screen and figure interface, inout device : USB internal storage IG, A great amount of design files can be stored at the same time and they can be fetched out for use at any time as per production requirements.
2. Monitoring menu : each kind of operating parameter can be shown and they can be adjust at anytime when the macjine is running, making conveniences for operation.
Power
Single-phase 220V, adopt advanced CMOS technology, having memorizing function at power shock stop.

Our Customers

M/S.Aditya Knits P. Ltd.
M/S.Award Fabrics
M/S.Bastion Hosiery Factory
M/S.Bala ji Overseas
M/S.Birmi, Panipat
M/S.Chiripal Group, Ahmadabad
M/S.Cotton & Blends
M/S.Creative Line, Ludhiana
M/S.D.C. Fabrics, Ludhiana
M/S.Dashmesh Dyeing
M/S.Greatway/ Eveline, Ludhiana
M/S.Gold Star Knits
M/S.Kapoor Cotsyn, Ludhiana
M/S.KD Fabrics, Ludhiana
M/S.Knit Craft Overseas, New Delhi
M/S.Lakra Bros
M/S S.M enterprise
M/S Jain knit Fab.
M/S Bushan traders
M/S Sk fabrics
M/S Mahavir apparels
M/S Shree Ganesh fabrics
M/S Shankeshwar enterprises

Our Customers

M/S.Malhan Hosiery Mills, Ludhiana
M/S.Maral Overseas Ltd
M/S.Ma Bhapwal, Panipat
M/S.Minnie King Knitwears
M/S.Nagpal Exports
M/S.Nirbhay Knitting, Halol(Gujrat)
M/S.Oriental Dyeing., Ludhiana
M/S.Oster Group
M/S.Oswal Fashion P Ltd.
M/S.Oswal Knit India Ltd. Ludhiana
M/S.Porus Knit (P) Ltd., Ludhiana
M/S.Priknit Apparels
M/S Aarti international
M/S Octave clothing
M/S Knitwell fabrics
M/S Anand international, panipat
M/S JP knits New Delhi
M/S Himal Textile industry Nepal
M/S Aastik clothing
M/S Renu creations
M/S Kaursen fabrics
M/S Rohan enterprises

Our Customers

M/S.Rage Knitwears, Ludhiana
M/S.Rajah Hosiery Mills., Ludhiana
M/S.Sanjoo Prints, Surat
M/S.Sajani, Ahmedabad
M/S.SanKeshwan Knits
M/S.Shital Fibres Ltd. Jalandhar
M/S.Shivalik Global & Sham Tex, Faridabad
M/S.Shivalik prints.
M/S.SPL Industries Ltd., Faridabad
M/S.Sweety Fabrics, Ludhiana
M/S.Tudor Knitting Works
M/S.Vallabh Fabrics., Ludhiana
M/S.Vallabh Yarns., Ludhiana
M/S.Vardhman, Panipat
M/S.Versatile Enterprises Pvt. Ltd
M/S.Virsa Knits, Ludhiana
M/S J.S textiles
M/S Maa Padmavati
M/S Northern fabrics
M/S Sachi processors
M/S Nagesh Knitwears
M/S Vijay Vallabh Knit Fab
M/S Ell ess fabrics

Management

We are providing our services to the knitting industry of Ludhiana for the last 25 years. In this short span we have been instrumental in setting up many new textile ventures successfully in India and supplied textile and allied machineries to almost all the prominent existing as well as new textile companies. We are dealing in all kind of: Circular Knitting machines, Flat Knitting Machines, Collar Machines, Dyeing Machines and Laser Cutting Marking Equipment.
